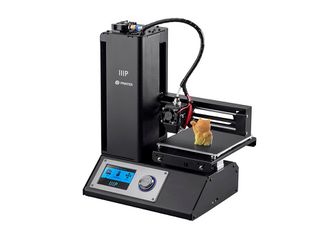

Monoprice Select Mini 3D Printer V2

Make/Model

Cost To Use

  • $0.05 per gram of filament for SLMS-provided filament
  • $0.03 per gram of filament for user-provided filament (to cover printer operating cost and “wear-and-tear”)

Notes

  • Restricted to Members Only
  • You MUST BE TRAINED before using it alone. Ask for help from those who have been trained, and contact the Area Captain to set up an appointment for your training.

Specs

  • Model: 21711
  • Extruder Type: Single: Extruder
  • Printing Technology: FDM
  • Supported Filament: Size: 1.75mm
  • Supported Filament: Types: ABS,: PLA
  • Max. Extruder: Temperature: +482°F: (+250°C)
  • Max. Platform: Temperature: +140°F: (+60°C)
  • Nozzle Diameter: 0.4mm
  • Max. Printing: Speed: 55mm/sec
  • Layer Resolution Fast:: 0.2mm,: Normal:: 0.131mm,: High: Quality:: 0.087mm
  • Build Area: 4.7″: x: 4.7″: x: 4.7″: (120: x: 120: x: 120: mm)
  • Build Volume: 103.8: cu-in: (1728: cc)
  • Connectivity: Wi-Fi®, microSD™ card, USB
  • Offline Printing: Yes, with microSD™ card
  • Supported File Formats: .stl and .obj
  • Supported Operating Systems: Windows® 7 and later, Mac® OS X®
  • Supported Software: Cura, Repetier-Host
  • Display Type: 3.7″ IPS color screen
  • Max. Power Consumption: 120 watts
  • AC Adapter Input Power: 100 ~ 240 VAC, 50/60 Hz
  • Input Power: 12 VDC
  • Dimensions (H x W x D): 13.5″ x 11.3 x 7.5″ (343 x 287 x 190 mm)
  • Weight: 9.9 lbs. (4.5 kg)

Accessories Available

  • Coming soon

Recommended Settings

  • Coming soon

Materials Information

  • Coming soon

Current Status

  • Available

History

  • __/__/__ – Available

Documentation

Back to 3D Printing Tools & Equipment

Note: This page is under construction and is not yet complete. Please check back later.
