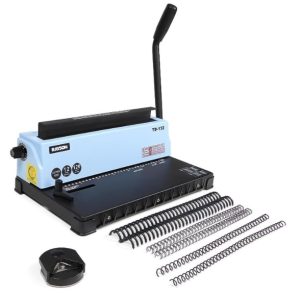

Wire Binding Machine

Make/Model

  • Rayson TD-132

Cost To Use

  • No charge for use of equipment.
  • Member must provide own consumables or purchase from SLMS
    • Use the POS system to charge it to your account.

Contact Area Captain if you need clarification or more details.

Notes

  • You MUST BE TRAINED before using it alone. Ask for help from those who have been trained, and contact the Area Captain to set up an appointment for your training.
  • Do NOT use this machine with 4:1 pitch spiral binding coil

Specs

  • Holes quantity: 32 holes
  • Holes Shape & Holes size: Square shape & 0.15″ x 0.15″ (4*4mm)Margin2.5mm, 3.5mm, and 4.5mm
  • Wire Binding Capacity:
    • From 1/4″ (6.4mm) to 9/16″ (14.3mm)
    • 120 sheets (80gsm/20lb)
  • Punching capacity:
    • Paper: 12 Sheets (80gsm/20lb)
    • Plastic binding covers: 2 of 7 mil plastic binding covers
    • Leathergrain covers: 2 of 230g lethergrain binding covers
  • Die type: fixed

Recommended Settings

  • Set the dial (on the side of the machine) to proper punching position. (This is very important for punching all of the holes clearly through.)

Materials Information

  • 3:1 Pitch Wire-O Binding – Pros: Professional, durable, clean, attractive, 360°-page turn, lay-flat.
  • 3:1 Pitch Spiral binding – Pros: Rebinding, Flexible, durable, many colors, large range of sizes, 360°-page turn, lay-flat.
  • 3:1 Pitch Click Binding – Pros: Rebinding, Professional, clean, attractive, large range of sizes, 360°-page turn, lay-flat.

Note: Do NOT use this machine with 4:1 pitch spiral binding coil.

Current Status

  • Available

History

  • 07/12/23 – Available

Documentation

  • Coming soon

Back to Business Center Tools & Equipment

Note: This page is under construction and is not yet complete. Please check back later.
