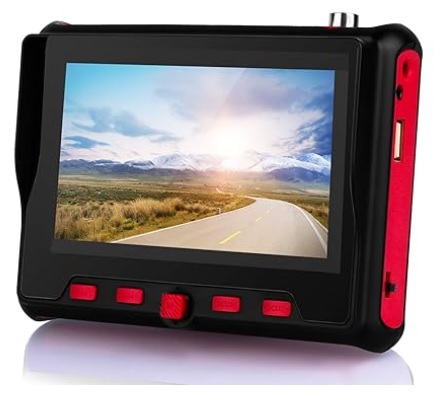

CCTV tester

Make/Model

  • SGEF 6300A

Cost To Use

  • No cost for members

Notes

  • Restricted to Members Only
  • You MUST BE TRAINED before using it alone. Ask for help from those who have been trained, and contact the Area Captain to set up an appointment for your training.

Specs

  • Screen size: 4.3-inch
  • Screen resolution: 480X272
  • Video format supported: PAL/NTSC (Auto adapt)
  • Supported modes:
    • coaxial 720P / 960P / 1080P /3MP/4MP/5MP AHD camera & CVBS analog camera
    • does not support IP cameras
  • PTZ control: supports RS485 and coaxial control
    • compatible with multiple PTZ protocols (PELCO-D / PELCO-P )
    • baud rate: 2400, 4800, 9600, 19200 (optional),
    • zooms in/out the lens, adjusts the focus, aperture/sets, PTZ continuing rotate test
  • UTC control:
    • Call OSD menu
    • press and hold the M menu button for 5 seconds to enter; UTC is displayed at the top of the screen
    • press the menu button to bring up the camera menu
    • operate the UTC menu with the up / down / left / right input keys
    • press the M menu button for 5 seconds to exit UTC mode
  • Power source: built in 3.7V 3000 mAh rechargeable lithium polymer battery
    • After charging 2-3 hour, it can work lasts 6 hours.
  • LED emergency lighting;

Accessories Available

  • Coming soon

Recommended Settings

  • Coming soon

Materials Information

  • Coming soon

Current Status

  • Available

History

  • 05/09/24 – Available

Documentation

  • User Manual (Coming soon)
